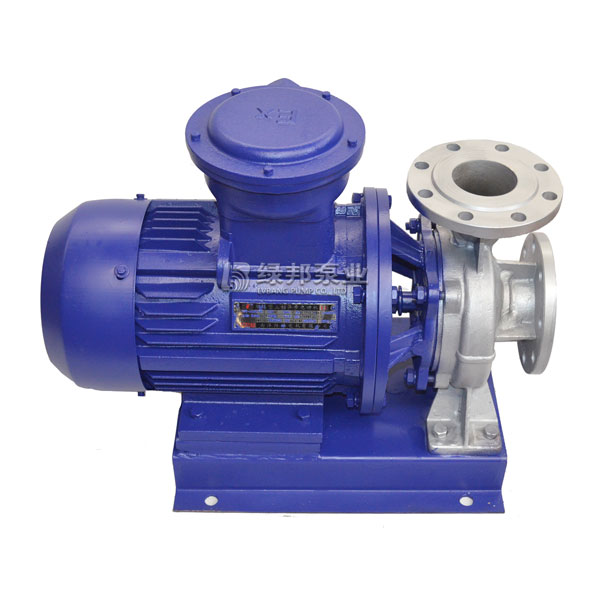

ISWB臥式管道油泵產品概述

臥式離心油根據ISW型離心泵之性能參數和油泵的獨特結構組合設計，并嚴格按照國際iso2858進行設計制造，該產品配備防爆電機，軸封選用硬質合金機械密封裝置，具有使用安全、性能穩定等特點。

ISWB臥式管道油泵型號意義

ISWB臥式管道油泵主要特點

運行平穩：泵軸的絕對同心度及葉輪優異的動靜平衡，保證平穩運行，絕無振動。

滴水不漏：不同材質的硬質合金密封，保證了不同介質輸送均無泄漏。

噪音低：兩個低噪音的軸承支撐下的水泵，運轉平穩，除電機微弱聲響，基本無噪音。

故障率低：結構簡單合理，關鍵部分采用國際一流品質配套，整機無故障工作時間大大提高。

維修方便：更換密封、軸承、簡易方便。

ISWB臥式管道油泵主要用途

1、ISW臥式離心泵供輸送清水及物理化學性質類似于清水的其它液體之用，適用于工業和城市給排水、高層建筑增壓送水、園林噴灌、消防增壓、遠距離輸送、暖通制冷循環、浴室等冷暖水循環增壓及設備配套，使用溫度t≤80℃。
2、熱水離心泵廣泛適用于：冶金、化工、紡織、造紙以及賓館飯店等鍋爐熱水增壓循環輸送及城市采暖系統，iswr型使用溫度t≤120℃。
3、化工離心泵供輸送不含固體顆粒，具有腐蝕性、粘度類似于水的液體，適用于石油、化工、電力、造紙、食品制藥和合成纖維等部門，使用溫度為-20℃～+120℃。
4、離心油泵供輸送汽油、煤油、柴油等油類產品或易燃、易爆液體，被輸送介質溫度為-20～ +120℃。

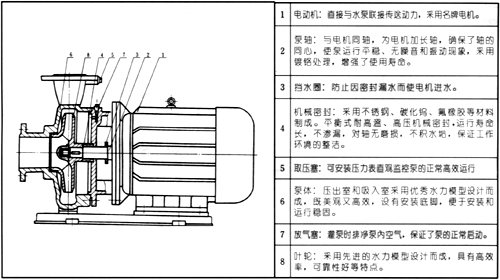

ISWB臥式管道油泵結構簡圖



 ISWB臥式管道油泵性能參數表

型號	流量		揚程 m	效率 %	轉速 r/min	電機 功率 kw	汽蝕 余量 m	重量 kg
	m3/h	l/s
ISWB15-80	1.1 1.5 2.0	0.3 0.42 0.55	8.5 8 7	26 34 34	2900	0.18	2.3	17
ISWB20-110	1.8 2.5 3.3	0.50 0.69 0.91	16 15 13.5	25 34 35	2900	0.37	2.3	25
ISWB20-160	1.8 2.5 3.3	0.50 0.69 0.91	33 32 30	19 25 23	2900	0.75	2.3	29
ISWB25-110	2.8 4.0 5.2	0.78 1.11 1.44	16 15 13.5	34 42 41	2900	0.55	2.3	26
ISWB25-125	2.8 4.0 5.2	0.78 1.11 1.44	20.6 20 18	28 36 35	2900	0.75	2.3	28
ISWB25-125A	2.5 3.6 4.6	0.69 1.0 1.28	17 16 14.4	35 35 35	2900	0.55	2.3	27
ISWB25-160	2.8 4.0 5.2	0.78 1.11 1.44	33 32 30	24 32 33	2900	1.5	2.3	39
ISWB25-160A	2.6 3.7 4.9	0.12 1.03 1.36	29 28 26	31 31 31	2900	1.1	2.3	34
ISWB32-100I	4.4 6.3 8.3	1.22 1.75 2.32	13.2 12.5 11.3	48 54 53	2900	0.75	2.0	32
ISWB32-125	3.5 5.0 6.5	0.97 1.39 1.8	22 20 18	40 44 42	2900	0.75	2.3	28
ISWB32-125A	3.1 4.5 5.8	0.86 1.25 1.61	17.6 16 14.4	43 43 43	2900	0.55	2.3	28
ISWB32-160	3.1 4.5 5.8	0.86 1.25 1.61	33 32 30	34 40 42	2900	1.5	2.3	28
ISWB32-160I	4.4 6.3 8.3	1.22 1.75 2.32	33.2 32 30.2	34 40 42	2900	2.2	2.0	47
ISWB32-200	3.1 4.5 5.8	0.86 1.25 1.61	51 50 48	28 35 37	2900	3	2.0	47
ISWB32-200I	4.4 6.3 8.3	1.22 1.75 2.32	50.5 50 48	26 33 35	2900	4	2.0	43
ISWB32-200IA	2.8 4.0 5.2	0.78 1.11 1.44	44.6 44 42.7	34 40 42	2900	2.2	2.0	74
ISWB40-100	4.4 6.3 8.3	1.22 1.75 2.31	13.2 12.5 11.3	48 54 53	2900	0.55	2.3	32
ISWB40-100A	3.9 5.6 7.4	1.08 1.56 2.06	10.6 10 9	52 52 52	2900	0.37	2.3	32
ISWB40-125	4.4 6.3 8.3	1.22 1.75 2.31	21 20 18	41 46 43	2900	1.1	2.3	34
ISWB40-125A	3.9 5.6 7.4	1.08 1.56 2.06	17.6 16 14.4	40 45 41	2900	0.75	2.3	33
ISWB40-160	4.4 6.3 8.3	1.22 1.75 2.31	33 32 30	35 40 40	2900	2.2	2.3	47
ISWB40-160A	4.1 5.9 7.8	1.14 1.64 2.17	29 28 26.3	34 39 39	2900	1.5	2.3	43
ISWB40-160B	3.8 5.5 7.2	1.06 1.53 2.0	25.5 24 22.5	34 38 37	2900	1.1	2.3	38
ISWB40-200	4.4 6.3 8.3	1.22 1.75 2.31	51 50 48	26 33 32	2900	4	2.3	74
ISWB40-200A	4.1 5.9 7.8	1.14 1.64 2.17	45 44 42	26 31 30	2900	3	2.3	62
ISWB40-200B	3.7 5.3 7.0	1.03 1.47 1.94	38 36 34.5	29 29 29	2900	2.2	2.3	52
ISWB40-250	4.4 6.3 8.3	1.22 1.75 2.31	82 80 74	24 28 28	2900	7.5	2.3	105
ISWB40-250A	4.1 5.9 7.8	1.14 1.64 2.17	72 70 65	24 28 27	2900	5.5	2.3	98
ISWB40-250B	3.8 5.5 7.0	1.06 1.53 1.94	61.5 60 56	23 27 26	2900	4	2.3	77
ISWB40-100I	8.8 12.5 16.3	2.44 3.47 4.53	13.2 12.5 11.3	55 62 60	2900	1.1	2.3	34
ISWB40-100IA	8 11 14.5	2.22 3.05 4.03	10.6 10 9	60 60 60	2900	0.75	2.3	32
ISWB40-125I	8.8 12.5 16.3	2.44 3.47 4.53	21.2 20 17.8	49 58 57	2900	1.5	2.3	38
ISWB40-125IA	8 11 14.5	2.22 3.05 4.03	17 16 14	57 57 57	2900	1.1	2.3	33
ISWB40-160I	8.8 12.5 16.3	2.44 3.47 4.53	33 32 30	45 52 51	2900	3	2.3	56
ISWB40-160IA	8.2 11.7 15.2	2.28 3.25 4.22	29 28 26	44 51 50	2900	2.2	2.3	47
ISWB40-160IB	7.3 10.4 13.5	2.38 2.89 3.75	23 22 20.5	50 50 50	2900	1.5	2.3	43
ISWB40-200I	8.8 12.5 16.3	2.44 3.47 4.53	51.2 50 48	38 46 46	2900	5.5	2.3	85
ISWB40-200IA	8.3 11.7 15.3	2.31 3.25 4.25	45 44 42	37 45 45	2900	4	2.3	75
ISWB40-200IB	7.5 10.6 13.8	2.08 2.94 3.83	37 36 34	44 44 44	2900	3	2.3	63
ISWB40-250I	8.8 12.5 16.3	2.44 3.47 4.53	81.2 80 77.5	31 38 40	2900	11	2.3	145
ISWB40-250IA	8.2 11.6 15.2	2.28 3.22 4.22	71 70 68	38 38 38	2900	7.5	2.3	95
ISWB40-250IB	7.6 10.8 14	2.11 3.0 3.89	61.4 60 58	37 37 37	2900	7.5	2.3	94
ISWB40-250IC	7.1 10.0 13.1	1.97 2.78 3.64	53.2 52 50.4	36 36 36	2900	5.5	2.3	88
ISWB50-100	8.8 12.5 16.3	2.44 3.47 4.53	13.6 12.5 11.3	55 62 60	2900	1.1	2.3	36
ISWB50-100A	8 11 14.5	2.22 3.05 4.03	11 10 9	60 60 60	2900	0.75	2.3	35
ISWB50-125	8.8 12.5 16.3	2.44 3.47 4.53	21.5 20 17.8	49 58 57	2900	1.5	2.3	43
ISWB50-125A	8 11 14.5	2.22 3.05 4.03	17 16 14	57 57 57	2900	1.1	2.3	38
ISWB50-160	8.8 12.5 16.3	2.44 3.47 4.53	33 32 30	45 52 51	2900	3	2.3	59
ISWB50-160A	8.2 11.7 15.2	2.28 3.25 4.22	29 28 26	44 51 50	2900	2.2	2.3	51
ISWB50-160B	7.3 10.4 13.5	2.38 2.89 3.75	23 22 20.5	50 50 50	2900	1.5	2.3	47
ISWB50-200	8.8 12.5 16.3	2.44 3.47 4.53	52 50 48	38 46 46	2900	5.5	2.3	101
ISWB50-200A	8.3 11.7 15.3	2.31 3.25 4.25	45.8 44 42	37 45 45	2900	4	2.3	80
ISWB50-200B	7.5 10.6 13.8	2.08 2.94 3.83	37 36 34	44 44 44	2900	3	2.3	68
ISWB50-250	8.8 12.5 16.3	2.44 3.47 4.53	82 80 77.5	29 38 40	2900	11	2.3	160
ISWB50-250A	8.2 11.6 15.2	2.28 3.22 4.22	71.5 70 68	38 38 38	2900	7.5	2.3	115

ISWB50-250B	7.6 10.8 14	2.11 3.0 3.89	61.4 60 58	37 37 37	2900	7.5	2.3	114
ISWB50-250C	7.1 10.0 13.1	1.97 2.78 3.64	53.2 52 50.4	36 36 36	2900	5.5	2.3	108
ISWB50-100I	17.5 25 32.5	4.86 6.94 9.03	13.7 12.5 10.5	67 69 69	2900	1.5	2.5	41
ISWB50-100IA	15.6 22.3 29	4.3 6.19 8.1	11 10 8.4	65 67 68	2900	1.1	2.5	36
ISWB50-125I	17.5 25 32.5	4.86 6.94 9.03	21.5 20 18	60 68 67	2900	3	2.5	56
ISWB50-125IA	15.6 22.3 29	4.33 6.19 8.1	17 16 13.6	58 66 65	2900	2.2	2.5	48
ISWB50-160I	17.5 25 32.5	4.68 6.94 9.03	34.4 32 27.5	54 63 60	2900	4	2.5	72
ISWB50-160IA	16.4 23.4 30.4	4.56 6.5 8.44	30 28 24	54 62 59	2900	4	2.5	71
ISWB50-160IB	15.0 21.6 28	4.17 6.0 7.78	26 24 20.6	58 58 58	2900	3	2.5	59
ISWB50-200I	17.5 25 32.5	4.86 6.94 9.03	52.7 50 45.5	49 58 59	2900	7.5	2.5	108
ISWB50-200IA	16.4 23.5 30.5	4.56 6.53 8.47	46.4 44 40	48 57 58	2900	7.5	2.5	107
ISWB50-200IB	15.2 21.8 28.3	4.22 6.06 7.86	40 38 34.5	55 55 55	2900	5.5	2.5	100
ISWB50-250I	17.5 25 32.5	4.86 6.94 9.03	82 80 76.5	39 50 52	2900	15	2.5	175
ISWB50-250IA	16.4 23.4 30.5	4.56 6.5 8.47	71.5 70 67	39 50 52	2900	11	2.5	165
ISWB50-250IB	15 21.6 28	4.17 6.0 7.78	61 60 57.4	38 49 54	2900	11	2.5	165
ISWB50-315I	17.5 25 32.5	4.86 6.94 9.03	128 125 122	30 40 44	2900	30	2.5	310
ISWB50-315IA	16.6 23.7 31	4.61 6.58 8.6	115 113 110	30 40 44	2900	22	2.5	245
ISWB50-315IB	15.7 22.5 29.2	4.36 6.25 8.0	103 101 98	39 39 39	2900	18.5	2.5	215
ISWB50-315IC	14.4 20.6 26.8	4.0 5.72 7.44	86 85 83	38 38 38	2900	15	2.5	195
ISWB65-100	17.5 25 32.5	4.86 6.94 9.03	13.7 12.5 10.5	67 69 69	2900	1.5	2.5	46
ISWB65-100A	15.6 22.3 29	4.3 6.19 8.1	11 10 8.4	65 67 68	2900	1.1	2.5	41
ISWB65-125	17.5 25 32.5	4.86 6.94 9.03	21.5 20 18	60 68 67	2900	3	2.5	58
ISWB65-125A	15.6 22.3 29	4.33 6.19 8.1	17 16 14.4	58 66 65	2900	2.2	2.5	49
ISWB65-160	17.5 25 32.5	4.86 6.94 9.03	34.4 32 27.5	54 63 60	2900	4	2.5	75
ISWB65-160A	16.4 23.4 30.4	4.56 6.5 8.44	30 28 24	54 62 59	2900	4	2.5	75
ISWB65-160B	15.0 21.6 28	4.17 6.0 7.78	26 24 20.6	2900	3	2.5	63
ISWB65-200	17.5 25 32.5	4.86 6.94 9.03	52.7 50 45.5	49 58 59	2900	7.5	2.5	107
ISWB65-200A	16.4 23.5 30.5	4.56 6.53 8.47	46.4 44 40	48 57 58	2900	7.5	2.5	107
ISWB65-200B	15.2 21.8 28.3	4.22 6.06 7.86	40 38 34.5	55 55 55	2900	5.5	2.5	100
ISWB65-250	17.5 25 32.5	4.86 6.94 9.03	82 80 76.5	39 50 52	2900	15	2.5	180
ISWB65-250A	16.4 23.4 30.5	4.56 6.5 8.47	71.5 70 67	39 50 52	2900	11	2.5	170
ISWB65-250B	15 21.6 28	4.17 6.0 7.78	61 60 57.4	38 49 54	2900	11	2.5	170
ISWB65-315	17.5 25 32.5	4.86 6.94 9.03	127 125 122	32 40 44	2900	30	2.5	320
ISWB65-315A	16.6 23.7 31	4.61 6.58 8.6	115 113 110	32 40 44	2900	22	2.5	255
ISWB65-315B	15.7 22.5 29.2	103 101 98	39 39 39	2900	18.5	2.5	225
ISWB65-315C	14.4 20.6 26.8	4.0 5.72 7.44	86 85 83	38 38 38	2900	15	2.5	205
ISWB65-100I	35 50 65	9.72 13.9 18.1	13.8 12.5 10	67 73 70	2900	3	3.0	63
ISWB65-100IA	31.3 44.7 58	8.7 12.4 16.1	11 10 8	66 72 69	2900	2.2	3.0	53
ISWB65-125I	35 50 65	9.72 13.9 18.1	22 20 17	67 72.5 70	2900	5.5	3.0	99
ISWB65-125IA	31.3 45 58	8.7 12.5 16.1	17.5 16 13.6	66 71 69	2900	4	3.0	78
ISWB65-160I	35 50 65	9.72 13.9 18.1	35 32 28	63 71 70	2900	7.5	3.0	103
ISWB65-160IA	32.7 46.7 61	9.1 13.0 16.9	30.6 28 24	62 70 69	2900	7.5	3.0	103
ISWB65-160IB	30.3 43.3 56.3	8.4 12.0 15.6	26 24 21	69 69 69	2900	5.5	3.0	97
ISWB65-200I	35 50 65	9.72 13.9 18.1	53.5 50 46	55 67 68	2900	15	3.0	176
ISWB65-200IA	32.8 47 61	9.1 13.1 16.9	47 44 40	54 66 67	2900	11	3.0	166
ISWB65-200IB	30.5 43.5 56.6	8.5 12.1 15.7	40.6 38 33.4	65 65 65	2900	7.5	3.0	114
ISWB65-250I	35 50 65	9.72 13.9 18.1	83 80 72	52 59 60	2900	22	3.0	235
ISWB65-250IA	32.5 46.7 61	9.0 13.0 16.9	73 70 63	52 59 60	2900	18.5	3.0	205
ISWB65-250IB	30 43.3 56	8.3 12.0 15.6	62 60 54	58 58 58	2900	15	3.0	180
ISWB65-315I	35 50 65	9.72 13.9 18.1	128 125 121	44 54 57	2900	37	3.0	350
ISWB65-315IA	32.5 46.5 60.5	9.0 12.9 16.8	112.6 110 106.4	43 54 57	2900	30	3.0	335
ISWB65-315IB	31 44.5 58	8.6 12.4 16.1	102.5 100 98	53 53 53	2900	30	3.0	335

ISWB100-315A	66.5 95 123.6	18.5 26.4 34.3	119 113 103	65 66 67	2900	55	4.0	549
ISWB100-315B	63 90 117	17.5 25 32.5	106.6 101 92	65 65 65	2900	45	4.0	439
ISWB100-315C	58 82 107	16.1 22.8 29.7	90 85 76	63 63 63	2900	37	4.0	385
ISWB100-350	60 100 120	16.7 27.8 33.3	153.6 150 142	72 57 74	2900	90	4.0	950
ISWB100-350A	61 87 113	16.9 24.2 31.4	145.6 142 134	75 75 75	2900	75	4.0	830
ISWB100-350B	58 82 107	16.1 22.8 29.7	138.6 135 127	75 75 75	2900	55	4.0	600
ISWB100-100I	96 160 192	26.7 44.4 53.3	14 12.5 10	64 73 70	2900	11	4.5	115
ISWB100-125I	96 160 192	26.7 44.4 53.3	24 20 14	62 74 69	2900	15	4.5	168
ISWB100-125IA	84 140 168	23.3 39 46.7	20 17 12	64 72 69	2900	11	4.5	168
ISWB100-160I	96 160 192	26.7 44.4 53.3	36 32 27	69 79 75	2900	22	5.6	210
ISWB100-160IA	84 140 168	23.3 39 46.7	32 28 23.5	66 76 72	2900	18.5	5.0	210
ISWB100-200I	96 160 192	26.7 44.4 53.3	53 50 45	69 79 78	2900	37	5.2	402
ISWB100-200IA	84 140 168	23.3 39 46.7	48 45 40	64 74 73	2900	30	4.5	395
ISWB100-200IB	60 100 120	16.7 27.8 33.3	43 40 36	72 72 72	2900	22	4.5	360
ISWB100-250I	96 160 192	26.7 44.4 53.3	83 80 72	65 77 74	2900	55	4.8	560
ISWB100-250IA	84 140 168	23.3 39 46.7	75 72 65	60 72 69	2900	45	4.5	420
ISWB100-250IB	60 100 120	16.7 27.8 33.3	68 65 58	70 70 70	2900	37	4.5	400
ISWB125-100	96 160 192	26.7 44.4 53.3	13 12.5 12	82 82 82	2900	11	4.0	180
ISWB125-100A	86 143 172	23.9 39.7 47.8	10.4 10 9.6	77 77 77	290	7.5	4.0	125
ISWB125-125	96 160 192	26.7 44.4 53.3	22.6 20 17	80 80 80	2900	15	4.0	220
ISWB125-125A	86 143 172	23.9 39.7 47.8	18 16 13.6	77 77 77	2900	11	4.0	210
ISWB125-160	96 160 192	26.7 44.4 53.3	36 32 28	78 78 &, nbsp; 78	2900	22	4.0	265
ISWB125-160A	90 150 180	25 41750	31.5 28 24.5	76 76 76	2900	18.5	4.0	230
ISWB125-160B	83 138 166	21.7 38.3 46.1	27 24 21	73 73 73	2900	15	4.0	215
ISWB125-200	96 160 192	26.7 44.4 53.3	55 50 46	77 77 77	2900	37	5.5	395
ISWB125-200B	83 138 166	21.7 38.3 46.1	41.3 37.4 34.5	75 75 75	2900	22	5.5	320
ISWB125-250	96 160 192	24.744.753.3	87 80 73	75 75 75	2900	55	5.0	580
ISWB125-250A	90 150 180	25 41.7 50	76 70 84	74 74 74	2900	45	5.5	490
ISWB125-250B	83 138 166	21.7 38.3 46.1	65 60 55	73 73 73	2900	37	5.5	430
ISWB125-215	96 160 192	26.7 44.7 53.3	133 125 119	70 70 70	2900	90	5.0	790
ISWB125-315A	90 150 180	25 41.7 50	117 110 104.6	70 70 70	2900	75	5.0	710
ISWB125-315B	86 143 172	23.9 39.7 47.8	106.4 100 95.2	69 69 69	2900	75	5.0	705
ISWB125-315C	80.5 134 161	22.4 37.2 44.7	96 88 86	67 67 67	2900	55	5.0	585
ISWB150-125	96 160 192	26.7 44.4 53.3	22.6 24 17	66 76 76	2900	11	4.0	210
ISWB150-125A	90 150 180	25 41.7 50	18 16 13.6	77 77 77	2900	7.5	4.0	130
ISWB150-160	96 160 192	26.7 44.4 53.3	36 32 27	75 75 75	2900	22	4.0	270
ISWB150-160A	90 150 180	25 41.7 50	32 28 23.5	76 76 76	2900	18.5	4.0	230
ISWB150-160B	84 141 168	23.3 39 46.7	27 24 21	73 73 73	2900	15	4.0	220
ISWB150-200	140 200 260	38.9 55.6 72.2	13.8 12.5 10.6	68 78 78	1450	15	3.0	265
ISWB150-200A	125 176 232.5	34.7 49.7 64.6	11 10 8.5	66 76 76	1450	11	3.0	244
ISWB150-200B	84 440 168	23.3 39 46.7	41 38 34	75 75 75	2900	22	4.0	275
ISWB150-250	140 200 260	38.9 55.6 72.2	21.8 20 17	73 79 77	1450	18.5	3.0	300
ISWB150-250A	129 184.4 240	35.8 51.2 66.7	18.5 17 14.4	72 78 76	1450	15	3.0	262
ISWB150-250B	117 167 217.5	32.5 46.4 60.4	15.2 14 12	76 76 76	1450	11	3.0	241
ISWB150-315	140 200 260	38.9 55.6 72.2	33.8 32 28	70 78 73	1450	30	2.5	410
ISWB150-315A	131 187 243	36.4 51.9 67.5	29.5 28 24.5	69 77 77	1450	22	3.5	335
ISWB150-315B	121 173 225	33.5 48.1 62.5	25 24 21	76 76 76	1450	18.5	3.5	315
ISWB150-350	96 160 192	26.7 44.4 53.3	153.6 150 142.8	80 80 80	2900	110	5.5	970
ISWB150-350A	90 150 180	25 41.7 50	145.6 142 134.8	70 70 70	2900	90	5.2	790
ISWB150-350B	84 140 168	23.3 39 46.7	138.6 35 127.8	65 76 74	2900	75	5.5	705
ISWB150-400	140 200 260	38.9 55.6 72.2	53 50 44	68 75 71	1450	45	3.5	490

ISWB150-400A	131 187 243	36.4 51.9 67.5	46.4 44 38.3	67 74 70	1450	37	3.5	454
ISWB150-400B	122 174 226.5	33.9 48.3 62.9	40 38 33	73 73 73	1450	60	3.5	435
ISWB150-400C	112 160 208	31.1 44.4 57.8	34 32 28	71 71 71	1450	22	3.5	365
ISWB150-250I	120 200 240	33.3 55.6 66.7	87 80 72	65 76 74	2900	75	4.5	702
ISWB150-250IA	112 187 224	31.1 51.9 62.2	76 70 63	64 75 73	2900	55	4.5	451
ISWB150-250IB	104 173 208	28.9 48.1 57.8	65 60 54	63 74 72	2900	45	4.5	460
ISWB150-315I	120 200 240	33.3 55.6 66.7	133 125 120	58 72 75	2900	110	4.5	980
ISWB150-315IA	112 187 224	31.1 51.9 62.2	116 110 105	57 72 74	2900	90	4.5	800
ISWB200-315IB	104 173 208	28.9 48.1 57.8	100 95 91	55 70 72	2900	75	4.5	724
ISWB200-200	140 200 260	38.9 55.6 72.2	13.8 12.5 10.6	68 78 78	1450	15	3.0	265
ISWB200-200A	125 179 232.5	34.7 49.7 64.6	11 10 8.5	66 76 76	1450	11	3.0	244
ISWB200-250	140 200 260	38.9 55.6 72.2	21.8 20 17	73 79 77	1450	18.5	3.0	305
ISWB200-250A	129 184.4 240	35.8 51.2 66.7	18.5 17 14.4	72 78 76	1450	15	3.0	267
ISWB200-250B	117 167 217.5	32.5 46.4 60.4	15.2 14 12	76 76 76	1450	11	3.0	246
ISWB200-315	140 200 260	38.9 55.6 72.2	33.8 32 28	70 78 78	1450	30	3.5	417
ISWB200-315A	131 189 243	36.4 51.9 67.5	29.5 28 24.5	69 77 77	1450	22	3.5	342
ISWB200-315B	121 173 225	33.6 48.1 62.5	25 24 21	76 76 76	1450	18.5	3.5	322
ISWB200-400	140 200 260	38.9 55.6 72.2	53 50 44	68 75 71	1450	45	3.5	498
ISWB200-400A	131 187 243	36.4 51.9 67.5	46.6 44 38.3	67 74 70	1450	37	3.5	462
ISWB200-400B	122 174 226.5	33.9 48.6 62.9	44 38 33	73 73 73	1450	30	3.5	443
ISWB200-400C	112 160 208	31.3 44.4 57.8	34 32 28	71 71 71	1450	22	3.5	373
ISWB200-200I	280 400 520	77.8 111.1 144	13.4 12.5 10.5	70 80 79	1450	22	4.0	382
ISWB200-200IA	250 358 465	69.4 99.4 129.2	10.7 10 8.5	68 78 77	1450	18.5	4.0	346
ISWB200-250I	280 400 520	77.8 111.4 144	22.2 20 14	75 80 72	1450	30	4.0	475
ISWB200-250IA	250 358 465	69.4 99.4 129.2	18 16 11.2	73 78 70	1450	22	4.0	405
ISWB200-250IB	226 322 419	62.8 89.4 116.4	14.4 13 7.3	70 75 67	1450	18.5	4.0	387
ISWB200-315I	280 440 520	77.8 111.4 144	36 32 26	73 80 75	1450	55	4.0	675
ISWB200-315IA	262 374 482	72.8 103.9 135	31.5 28 23	72 79 74	1450	45	4.0	560
ISWB200-315IB	242 346 450	67.2 96.1 125	27 24 19.5	78 78 78	1450	37	4.0	535
ISWB200-400I	280 400 520	77.8 111.4 144	54.5 50 39	75 81 77	1450	75	4.0	830
ISWB200-400IA	262 374 486	72.8 103.9 135	48 44 34	80 80 80	1450	75	4.0	830
ISWB200-400IB	242 346 450	67.2 96.1 125	41.4 38 29.6	78 78 78	1450	55	5.0	685
ISWB200-400IC	224 320 416	62.2 88.9 115.6	34.9 32 25	76 76 76	1450	45	5.0	580
ISWB250-250	350 550 650	97.2 152.8 180.5	22 20 16	78 82 81	1450	45	5.0	620
ISWB250-250A	300 500 600	83.3 139 166.7	18.3 17 14	76 80 80	1450	37	5.0	550
ISWB250-235	300 500 600	83.3 139 166.7	14 12.5 11	73 78 70	1450	22	4.5	410
ISWB250-300	300 500 600	83.3 139 166.7	22 20 16	78 78 78	1450	37	4.5	550
ISWB250-315	350 550 650	97.2 152.8 180.5	34 32 28	76 80 79	1450	75	5.5	890
ISWB250-315A	300 500 600	83.3 139 166.7	29.5 28 24	74 78 77	1450	55	5.5	690
ISWB250-315B	260 450 520	72.2 125 144.4	25 24 20	70 74 72	1450	45	5.5	620
ISWB250-400	300 500 600	83.3 139 166.7	54.5 50 39	72 72 72	1480	90	4.5	1530
ISWB300-235	480 720 900	133.3 200 250	20 18 15.5	77 81 74	970	55	5.0	1120
ISWB300-235A	438 607 821	121.7 182.5 228.1	16.5 15 13	75 79 72	970	45	5.0	1030
ISWB300-235B	400 600 750	111.1 167.0 208.3	14 12.5 11	73 77 70	970	37	5.0	890
ISWB300-300	480 720 900	133.3 200 250	31 28 25	77 81 77	970	75	5.0	1350
ISWB300-300A	444 666 833	123.3 185 231.4	26.5 24 21.5	76 80 76	970	75	5.0	1350
ISWB300-300B	415 623 779	115.3 173.1 261.4	23 21 18.5	79 79 79	970	55	5.0	1170
ISWB300-380	480 720 900	133.3 200 250	48 44 34	84 84 84	970	132	5.0	1900
ISWB300-380A	444 666 833	123.3 185 231.4	41.4 38 30	80 80 80	970	110	5.0	1700
ISWB300-380B	409 614 767	113.6 170.6 213.1	35 32 25	78 78 78	970	90	5.0	1530
ISWB300-235I	718 1080 1345	199.4 300 373.6	44.6 40 34.6	82 82 82	1450	160	5.5	1680
ISWB300-235IA	642 965 1203	178.3 268.1 334.2	35.7 32 27.7	80 80 80	1450	132	5.5	1440
ISWB200-315I	280 440 520	77.8 111.4 144	36 32 26	73 80 75	1450	55	4.0	675
ISWB200-315IA	262 374 482	72.8 103.9 135	31.5 28 23	72 79 74	1450	45	4.0	560
ISWB200-315IB	242 346 450	67.2 96.1 125	27 24 19.5	78 78 78	1450	37	4.0	535
ISWB200-400I	280 400 520	77.8 111.4 144 , ,	54.5 50 39	75 81 77	1450	75	4.0	830
ISWB200-400IA	262 374 486	72.8 103.9 135	48 44 34	80 80 80	1450	75	4.0	830
ISWB200-400IB	242 346 450	67.2 96.1 125	41.4 38 29.6	78 78 78	1450	55	5.0	685
ISWB200-400IC	224 320 416	62.2 88.9 115.6	34.9 32 25	76 76 76	1450	45	5.0	580
ISWB250-250	350 550 650	97.2 152.8 180.5	22 20 16	78 82 81	1450	45	5.0	620
ISWB250-250A	300 500 600	83.3 139 166.7	18.3 17 14	76 80 80	1450	37	5.0	550
ISWB250-235	300 500 600	83.3 139 166.7	14 12.5 11	73 78 70	1480	22	4.5	410
ISWB250-300	300 500 600	83.3 139 166.7	22 20 16	7878 78	1480	37	4.5	550
ISWB250-315	350 550 650	97.2 152.8 180.5	34 32 28	76 80 79	1450	75	5.5	890
ISWB250-315A	300 500 600	83.3 139 166.7	29.5 28 24	74 78 77	1450	55	5.5	690
ISWB250-315B	260 450 520	72.2 125 144.4	25 24 20	70 74 72	1450	45	5.5	620
ISWB250-400	300 500 600	83.3 139 166.7	54.5 50 39	72 72 72	1480	90	4.5	1530
ISWB250-235	480 720 900	133.3 200 250	20 18 15.5	77 81 74	970	55	5.0	1120
ISWB250-235A	438 607 821	121.7 182.5 228.1	16.5 15 13	75 79 72	970	45	5.0	1030
ISWB250-235B	400 600 750	111.1 167.0 208.3	14 12.5 11	73 77 70	970	37	5.0	890
ISWB300-300	480 720 900	133.3 200 250	31 28 25	77 81 77	970	75	5.0	1350
ISWB300-300A	444 666 833	123.3 185 231.4	26.5 24 21.5	76 80 76	970	75	5.0	1350
ISWB300-300B	415 623 779	115.3 173.1 261.4	23 21 18.5	79 79 79	970	55	5.0	1170
ISWB300-380	480 720 900	133.3 200 250	48 44 34	84 84 84	970	132	5.0	1900
ISWB300-380A	444 666 833	123.3 185 231.4	41.4 38 30	80 80 80	970	110	5.0	1700
ISWB300-380B	409 614 767	113.6 170.6 213.1	35 32 25	78 78 78	970	90	5.0	1530
ISWB300-235I	718 1080 1345	199.4 300 373.6	44.6 40 34.6	82 82 82	970	160	5.5	1680
ISWB300-235IA	642 965 1203	178.3 268.1 334.2	35.7 32 27.7	80 80 80	970	132	5.5	1440
